Crew Bus

Crew buses are vehicles that are used to transport personnel, typically oil and gas industry workers, to and from offshore platforms, drilling sites or other remote locations. They are designed to be both durable and comfortable, with a range of features that make them well-suited for use in the oil and gas industry.

The typical crew bus has several key components, including: • The chassis: The chassis is the frame of the bus that supports the body and other components. It is typically made of steel and is designed to be strong and durable. • The body: The body of the bus is typically made of aluminum or other lightweight materials and is designed to provide a comfortable and safe environment for the passengers. • The seats: The seats are typically made of comfortable and durable materials such as leather or vinyl. They are designed to provide a comfortable ride for the passengers. • The heating, ventilation and air conditioning (HVAC) system: The HVAC system is designed to provide a comfortable temperature and air quality for the passengers. • The lighting system: The lighting system is designed to provide adequate lighting for the passengers. • The entertainment system: Some crew buses have an entertainment system that includes a TV, DVD player, or other features to provide entertainment for the passengers during the ride.

The engineering specifications for crew buses are: • Chassis: typically from single-axle to six-axle • Engine: typically from 150 to 400 horsepower (HP) • Gross vehicle weight: typically from 26,000 to 80,000 pounds • Passenger capacity: typically from 30 to 60 passengers • Standard: OSHA, ASTM, API

Crew buses are designed to be both durable and comfortable, with a range of features that make them well-suited for use in the oil and gas industry.

You may also like

The Pulling Tool that ALMOST Fit When you are planning a wireline job no detail is too small. I had planned a job in offshore Australia where the job was fairly simple - it was just pull gas lift valve out of the completion. It was a single valve installed many years ago and I just needed to pull the valve and set a dummy. I had reviewed the well file and the only thing that stood out was the lack of activity on these wells since the wells had been drilled there had been no workovers or well interventions completed after 20 years. As with most well interventions there was limited time to prepare, and this was a fairly straight forward job. Luckily the pulling tool was locally available, as well as the slickline crew (meaning they were mostly in the same country), and equipment. We needed a large bore kickover tool but this was in stock and available so it looked like it was going to be fairly easy this time. I lined up a supervisor who used to work on the production side on the same platform, so things were coming together nicely. The oil industry is really good at adopting a technology (once it is proven) and then applying it to solve issues specific to their specific environment. However, the industry is not so fast to adopt new ways of doing things which is reasonable considering the safety and financial risks involved in the business we are in. When cost estimating the first of any type of work in an asset or area, the actuals will almost always be higher than average, but as lessons are learned and the work becomes standardized, efficiencies appear that will drive costs down and increase asset value…but, you have to start somewhere. An extreme example of this would be pulling a gas lift dummy valve – probably one of the most common activities in a platform-based oil well, however, if it has not been done on a platform, asset, company, area, before, it can be met with a healthy amount of skepticism. This was a standard operation and all the pieces were coming together. I have always enjoyed using a GANTT chart and seeing what is on the critical path when planning a project execution. No-one wants to be on the critical path, but everyone will use every possible day they can get before becoming the long lead item. On this job the critical path was the availability of the slickline unit, so there was time to look at other aspects. This gave time to have a thorough review of the program.
The SCSSSV Isolation Question In some wells with surface controlled subsurface safety valves a landing nipple is used to lock and operate a wireline retrievable downhole safety valve. The wireline retrievable valve can be pulled to allow nearly full-bore access to the wellbore, however it is a question as to whether an isolation sleeve should be run or not. One of the key advantages for installing a wireline retrievable subsurface safety valve is that it can be pulled and allow larger tools to be run on wireline. However, the insert valve has to form a seal with the inside of the tubing in a safety valve landings nipple. This is achieved by running an upper and lower seal assembly made of chevron seals (or o-rings) which form a seal for the hydraulic oil in the control line to pressure up the safety valve. When wirelining, the wire will ride in a certain location (low side) and can create a groove in this sealing area. This groove can lead to the packing elements of the insert valve not forming a hydraulic seal and rendering the valve inoperable. In this particular well, there was a history of sand production, and the completion was more than 40 years old, which are both cause for concern when running slickline across a SCSSSV nipple profile. It was decided during job design to install an isolation sleeve across the landing nipple to prevent damaging the sealing profile.
D6 Dozer A D6 bulldozer is a type of heavy construction equipment that is designed for use in a wide range of earthmoving and grading applications. It is typically used for tasks such as clearing land, grading, and digging trenches. The D6 is a medium-sized bulldozer that is manufactured by Caterpillar, one of the leading manufacturers of construction equipment. The D6 bulldozer features a durable steel frame and undercarriage that is designed to withstand the demanding conditions of heavy construction work. The frame and undercarriage are built to withstand high loads and stresses and are designed to provide a stable and durable platform for the bulldozer's attachments and components. The D6 bulldozer is powered by a diesel engine that provides a high level of power and performance. The engine is designed to provide a high level of fuel efficiency and low emissions, making it well-suited for use in a wide range of environments.
Sources list:
Image from https://www.mercedes-benz.co.uk/vans/en/vito-crew-van

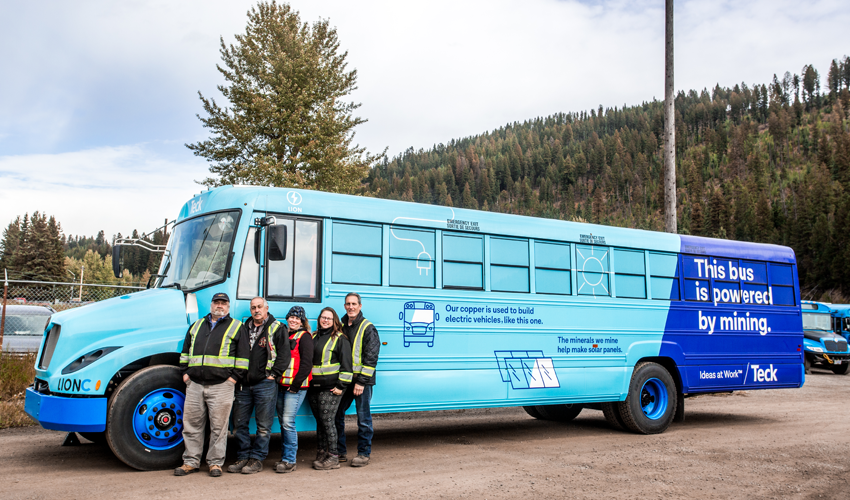

Image from https://www.teck.com/news/stories/2020/electric-buses-at-our-elk-valley-mines-reduce-ener
