Subsea X-mas Tree (SS Christmas Tree)

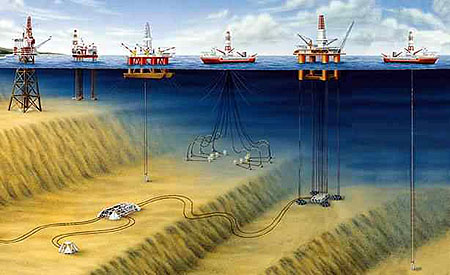

A subsea x-mas tree (Christmas tree) is a type of wellhead assembly that is used to control and regulate the flow of oil and gas from a subsea well. It is typically installed on the seafloor and is used to control the flow of fluid from the well to the production system on a platform or floating production storage and offloading (FPSO) vessel. The subsea x-mas tree is a complex assembly of valves, spools, and fittings that are designed to be durable and able to withstand the harsh conditions of the deep sea environment.

The typical subsea x-mas tree has several key components, including: • The wellhead connector: The wellhead connector of the subsea x-mas tree is the component that connects the tree to the wellhead. It is typically made of metal and is designed to be able to withstand the high-pressure and temperature found in a subsea well environment. • The master valve: The master valve of the subsea x-mas tree is the primary control valve that controls the flow of oil and gas from the well. It is typically a hydraulic or electro-hydraulic valve that is designed to be durable and able to withstand high-pressure and high-temperature conditions. • The flow control valves: The flow control valves of the subsea x-mas tree are used to regulate the flow of oil and gas from the well. They are typically ball valves, gate valves, or choke valves that are designed to be durable and able to withstand high-pressure and high-temperature conditions. • The subsea control module: The subsea control module of the subsea x-mas tree is used to control and monitor the tree's valves, and it typically consists of a control system, sensors, and communication systems. It is designed to be able to withstand the harsh conditions of the deep sea environment. • The umbilical and flying leads: The umbilical and flying leads are used to connect the subsea x-mas tree to the production system on the platform or FPSO vessel. They typically consist of electrical and hydraulic lines that are designed to be able to withstand the harsh conditions of the deep sea environment.

The engineering specifications for subsea x-mas tree are: • Size range: typically from 2" to 6" • Pressure rating: typically from 2000 to 15000 psi • Temperature range: typically from -20 to 250 °F • Standard: API 17D, API 6A, ISO 13628

Subsea x-mas trees are designed to be durable and able to withstand the harsh conditions of the deep sea environment. They are a complex assembly of valves, spools, and fittings that control and regulate the flow of oil and gas from a subsea well. They are commonly used in deepwater oil and gas production and are designed to control the flow of oil and gas from the well to the production system on a platform or FPSO vessel. These trees are known for their reliability and ability to withstand extreme conditions, ensuring safe and efficient flow of oil and gas from the well to the production system.
