X-mas Tree (Oil Well Christmas Tree)

A x-mas tree is a type of wellhead assembly that is used to control and regulate the flow of natural gas and other fluids from a gas well. It is typically installed at the top of the wellhead and is used to control the flow of fluid from the well to the rest of the production system. The x-mas tree is a complex assembly of valves, spools, and fittings that are designed to be durable and able to withstand the harsh conditions and high-pressure found in a gas well environment.

The typical x-mas tree used on a gas well has several key components, including: • The wellhead connector: The wellhead connector of the x-mas tree is the component that connects the tree to the wellhead. It is typically made of metal and is designed to be able to withstand the high-pressure and temperature found in a gas well environment. • The master valve: The master valve of the x-mas tree is the primary control valve that controls the flow of natural gas and other fluids from the well. It is typically a hydraulic master valve that is designed to be durable and able to withstand high-pressure and high-temperature conditions. • The flow control valves: The flow control valves of the x-mas tree are used to regulate the flow of natural gas and other fluids from the well. They are typically ball valves, gate valves, or choke valves that are designed to be durable and able to withstand high-pressure and high-temperature conditions. • The chokes: The chokes of the x-mas tree are used to regulate the flow of natural gas and other fluids from the well by controlling the pressure drop across the valve. They can be fixed or adjustable and typically made of metal and are designed to be durable and able to withstand high-pressure and high-temperature conditions. • The pressure gauges: The pressure gauges of the x-mas tree are used to measure the pressure of the natural gas and other fluids flowing from the well. They are typically made of metal and are designed to be durable and able to withstand high-pressure and high-temperature conditions.

The engineering specifications for Christmas tree used on a gas well are: • Size range: typically from 2" to 6" • Pressure rating: typically from 2000 to 15000 psi • Temperature range: typically from -20 to 250 °F • Standard: API 6A, API 14D, API 17D

X-mas trees used on gas wells are designed to be durable and able to withstand the harsh conditions and high-pressure found in a gas well environment. They are a complex assembly of valves, spools, and fittings that control and regulate the flow of natural gas and other fluids from the well. They are commonly used in oil and gas, natural gas production and transportion.

You may also like

The hard hat is a symbol of hard work The “hard boiled hat” was invented by Edward Bullard in 1919. A hardhat is a type of protective headgear that is worn by workers in the oil and gas industry to protect their head from falling objects, electrical hazards and other potential hazards that may occur on a drilling site. Hardhats are typically made of high-density polyethylene (HDPE) or other durable materials that can withstand impact and penetration. They are designed to provide a high level of protection to the head and face while allowing the worker to see and hear clearly. The typical hardhat used in oil drilling has several key components, including: • The shell: The shell is the outermost layer of the hardhat and is typically made of HDPE or other durable materials that can withstand impact and penetration. • The suspension system: The suspension system is the internal support system of the hardhat that holds it securely on the head and provides a comfortable fit. It is typically made of a combination of straps, webbing, and other materials that can be adjusted to fit the head snugly. • The headband: The headband is the internal band that sits on the forehead, helping to distribute the weight of the hardhat evenly around the head. • The ear muffs: Many hardhats have the option of adding earmuffs or earplugs to protect the worker from excessive noise. • The face shield: Some hardhats have the option of adding a face shield to protect the worker from flying debris and other hazards.
Everyone wants to do a good job or DEG Regeneration Drama I had just been put in charge of the Facilities Engineering department and I found the job great - working with lots of production, maintenance, and operations people. My manager came to me with an issue that a vendor had not done the work they were supposed to do, took the money for the job, delivered the wrong equipment, and refused to help commission and fix the system. The first step was to figure out what this project was all about. The company was using di-etheylene glycol (DEG) to carry corrosion inhibitor from the wells to the gas treatment facility, as well as binding any free water to avoid hydrates. At the facility the glycol was re-generated by heating the glycol to boil off the water from the glycol (returning it to Lean Glycol). The lean DEG was then returned to the field and re-injected at different wellsites. It was mandated two years previous that the existing DEG regeneration system did not meet standards and would have to be replaced with a new system. The first year this was agreed was a tough one in the industry, so it was almost immediately cut from the budget. The following year it was permitted to have study work done, but at a fraction of the required engineering cost. The year that it was scheduled to be installed, engineering began, and consultants were hired to execute the project and pressure was placed on the organization to get this now hyper-critical regulatory issue dealt with.
Sources list:

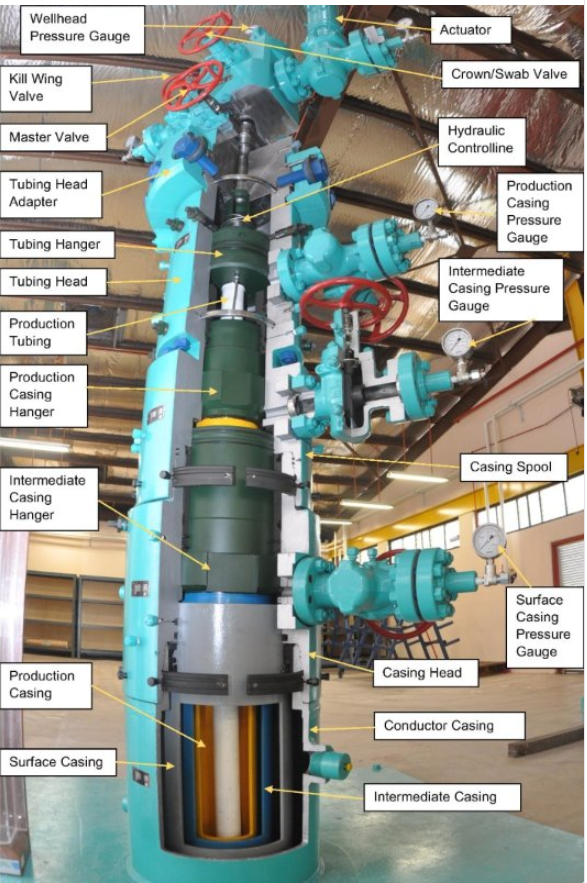

Image from https://production-technology.org/christmas-tree-wellhead/
